Home Products Digit LED Digit Segments common anode 7 segment display
common anode 7 segment display
common anode 7 segment display

common anode 7 segment display

Product Tags :
Product Attributes :

OEM service available

Rohs & Reach approved

Operating temperature: -35~+85℃

Driving voltage: 5v

Max. current: 20mA

Samples for free

Package: EPE/Carton, tray, tubes & etc.

Product Description

Product Description

Part No. KRR3041G Digit Height 0.3inch/7.6mm
Screen Size 30.4x13.2x7mm Emitted Color Green color
Face Color Black/grey color Segment Color white/same as emitted color
Epoxy Color Milky white/water clear Polarity CC/CA
Digit Number 4/four Luminous Intensity 15mcd
If you need other size or colors, please contact us.



Details Images

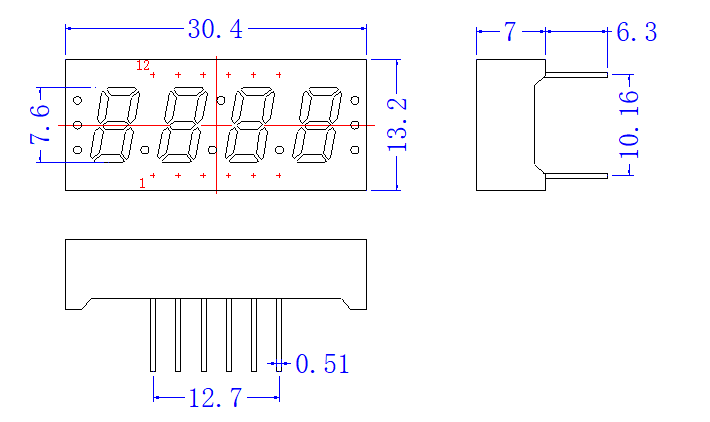

Dimension Part

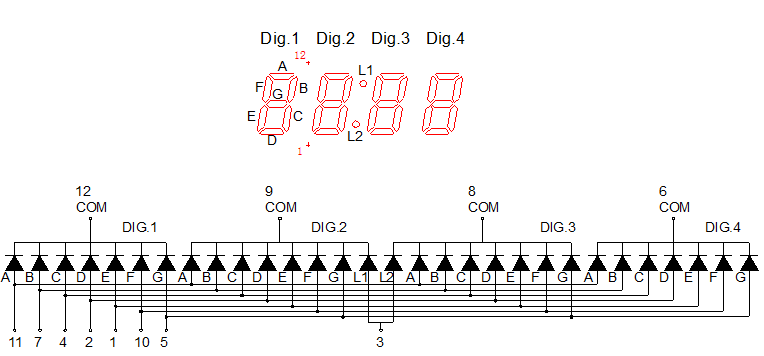

Circuit Part



Application

advertising publish, display of dishes, exhibition hall, elevator,Pictures...



FAQ:

Q1: Can i get a sample for test?

Yes, we can offer free samples for tests.

Q2: Do you have MOQ for standard products?

Sample/trial order no requirement; the second order shall be no less than 2k/lot.

Q3: Lead time for mass production products

18-25 days based on the complexity and quantity of products

Q4: Custom service

We have R&D team and are able to do customized products according to your requirement. Until now we have developed over 5800 pieces of new models.

Q5: Quality Assurance

All products are approved by RoHS and Reach.

Before shipment, all products are 100% tested. Our products are highly recognized by customers from European Countries, Americas region, East Asia and Africa region etc. Were quite confident in our product quality.

Q6: After-sale Service

Shipping DOES NOT mean the work is over. Well track the arrival of the goods. Shall there is any problem related to products, we will solve it in time.

Q7: Why Choose Us

On the premise of ensuring product quality, we offer more competitive price

Superior and professional pre-sales advise and timely after-sale service
